Repair Procedures: Installation

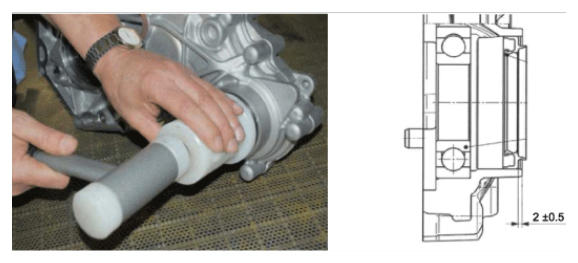

Attach radial seal ring on the press in tool.
Knock with the plastic ring into the transfer case housing.

Courtesy of
Place the circlip in the groove of the flange.

Courtesy of
Insert the new flange (A) into the transfer case by applying slight strokes of the plastic hammer.

Courtesy of
Fill the lower edge of the filler plug (installed transfer case) with the oil.
Tighten the plug to 60 Nm (6.0kgf.m, 43.4lb-ft).

Oil type: Shell TF0870
CAUTION:
- Replace gasket before reinstalling the filler plug.
Courtesy of
Install the transfer case in the vehicle.
(Refer to 4 Wheel Drive (AWD) System - "TRANSFER CASE ASSEMBLY ")
After the installation, start the engine and then check if there are any leakages from the transfer case.
