Components & Components Location: Components

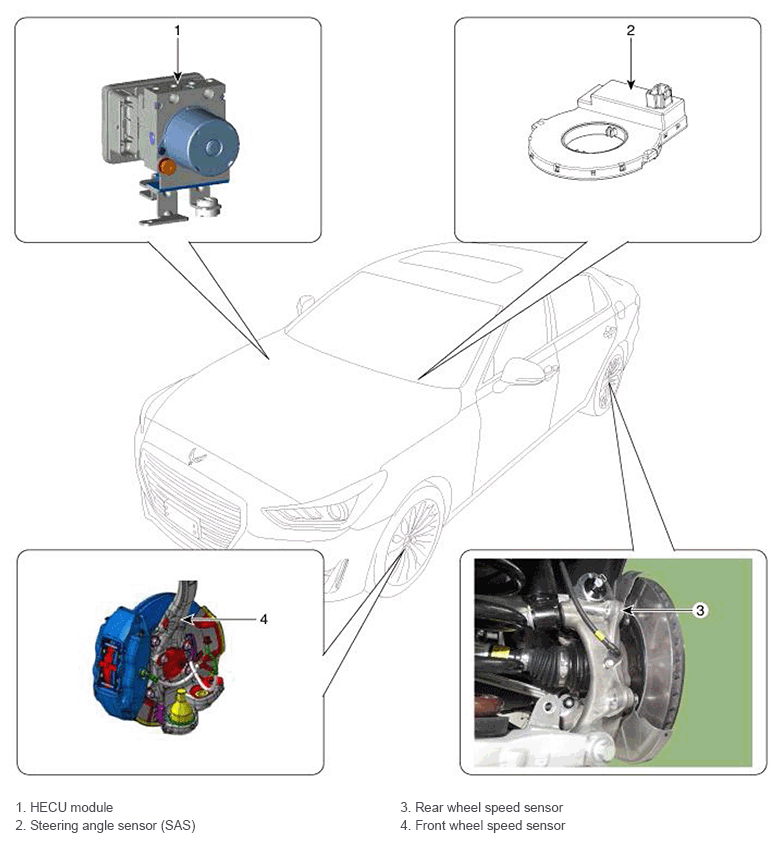

Fig 1: Locating ESC (Electronic Stability Control) System Components
G11405124Courtesy of HYUNDAI MOTOR AMERICA
