Tires/Wheels/Wheel Alignment: Alignment: Toe: Camber
Camber Angle
-1.4°±0.6°

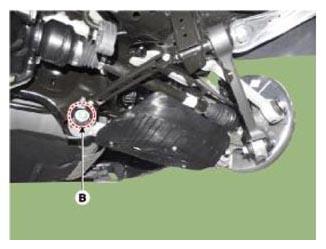

Adjust the camber by turning the cambolt of the rear lower arm.
Left cambolt: Clockwise → camber (+)
Right cambolt: Clockwise →camber (-)
The variation of camber by a rotation of the cambolt:
About 0.2°
| Item | Direction of rotation | Toe |
|---|---|---|
| Left side | Clockwise | Decrease (-) |
| Counter clockwise | Increase (+) | |
| Right side | Clockwise | Increase (-) |
| Counter clockwise | Decrease (+) |
