Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the parking switch connector (B) and release the fastener (A) to disconnect the cable from the parking release lever.

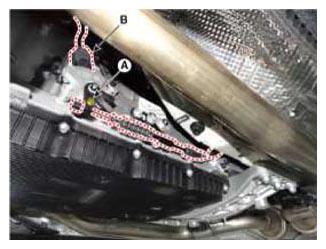

    Fig 1: Locating Parking Switch Connector
    G11404865Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the parking release lever (A) after removing the nut (B).

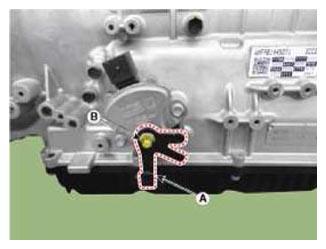

    Fig 2: Locating Parking Release Lever
    G11404866Courtesy of HYUNDAI MOTOR AMERICA
  4. Using the transmission jack, support the oil pan of the transmission.
  5. Remove the cross member (A).
  6. Jack falls down to remove the parking switch.

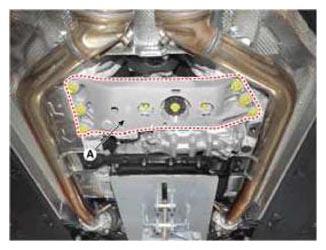

    Fig 3: Locating Cross Member
    G11404867Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the parking switch after removing the bolts (A).

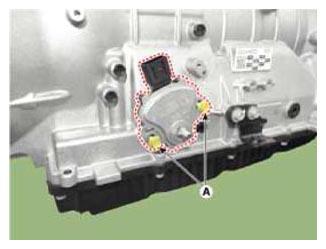

    Fig 4: Locating Parking Switch Bolts
    G11404868Courtesy of HYUNDAI MOTOR AMERICA
