Components Location

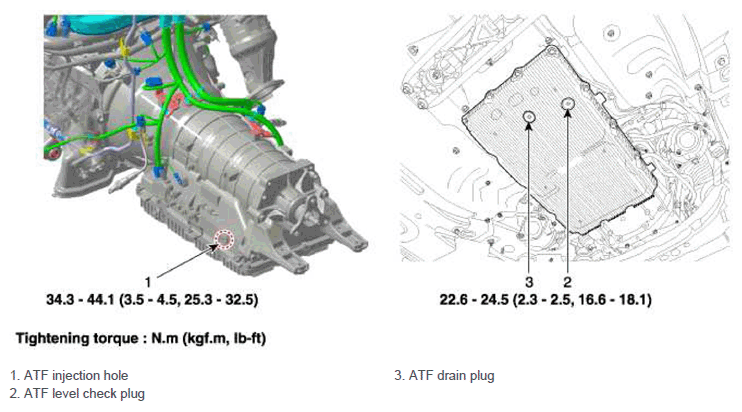

Fig 1: Locating Fluid Components With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
