Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

  3. Remove the steering wheel back cover (A) after loosening the screws and disconnecting the connectors (B).

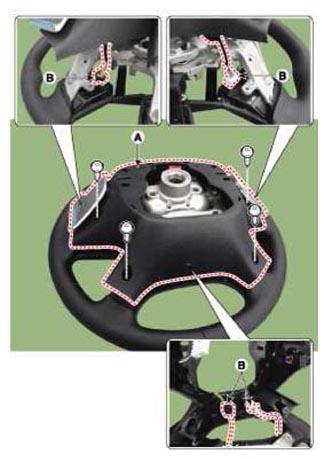

    Fig 1: Removing Steering Wheel Back Cover Screws
    G11403956Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the steering wheel remote control (A) after loosening the mounting screw.

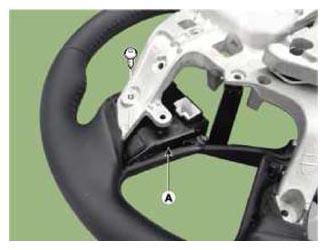

    Fig 2: Removing Steering Wheel Remote Control Mounting Screw
    G11403957Courtesy of HYUNDAI MOTOR AMERICA
