Repair Procedures: Removal

  1. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER ")

  2. Disconnect the smart cruise control unit connector (A).
  3. Remove the smart cruise control unit assembly (B) from the vehicle after loosening mounting bolts.

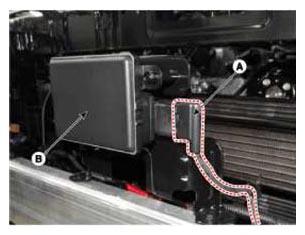

    Fig 1: Disconnecting Smart Cruise Control Unit Connector
    G11403942Courtesy of HYUNDAI MOTOR AMERICA
    Fig 2: Removing Smart Cruise Control Unit Assembly Mounting Bolts
    G11403943Courtesy of HYUNDAI MOTOR AMERICA
