Components and Components Location: Components

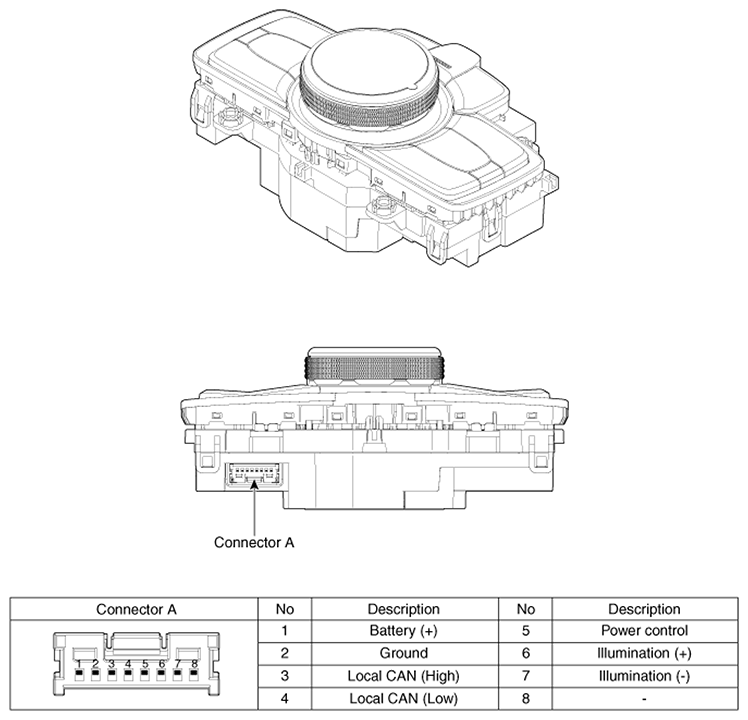

Fig 1: Locating Rear Integrated Controller Connector

G11405989

Courtesy of HYUNDAI MOTOR AMERICA
