Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering wheel back cover (A) after loosening the screws and disconnecting the connectors.

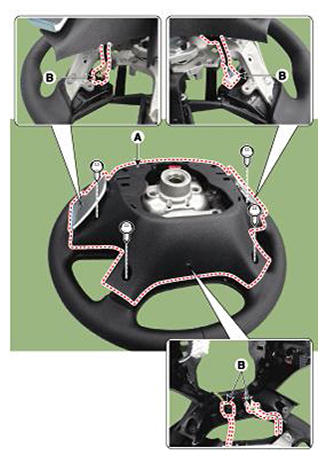

Fig 1: Removing Steering Wheel Back Cover With Screws (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

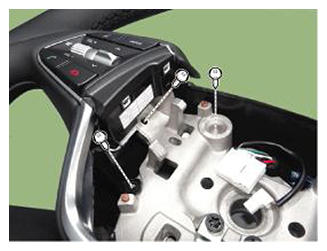

Fig 2: Removing Steering Wheel Back Cover With Screws (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

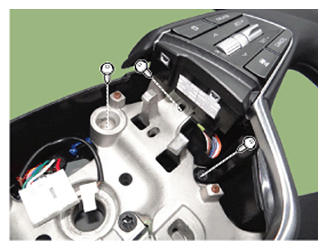

Fig 3: Removing Steering Wheel Back Cover With Screws (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering wheel remote control (A) after loosening the mounting screw.

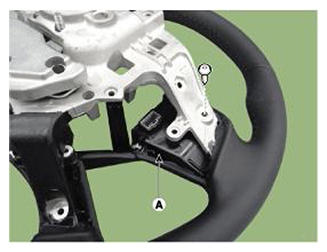

Fig 4: Removing Steering Wheel Remote Control With Mounting Screw (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

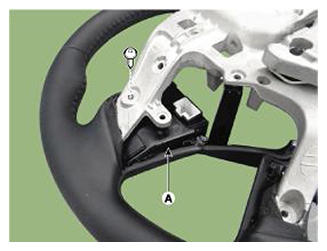

Fig 5: Removing Steering Wheel Remote Control With Mounting Screw (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
