Driver Memory Power Seat Switch

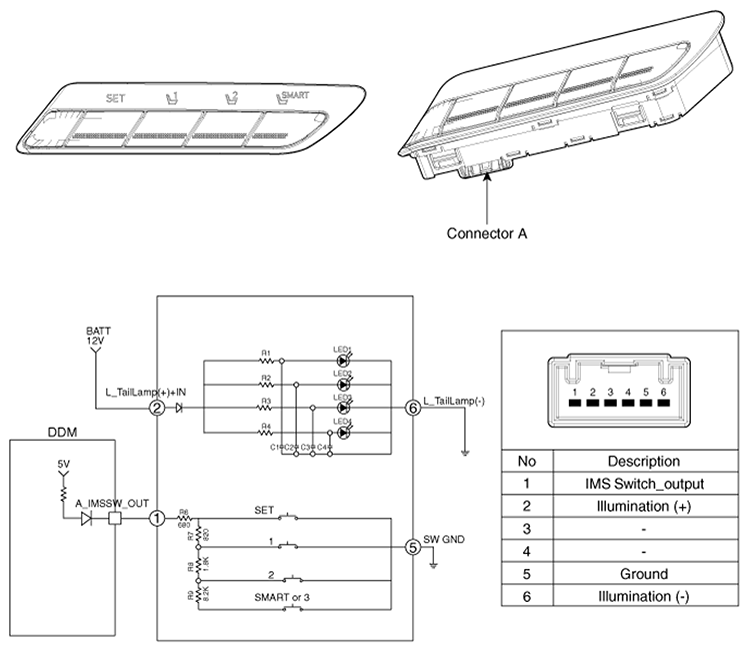

Fig 1: Driver Memory Power Seat Switch Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
