Assist Door Module (ADM)

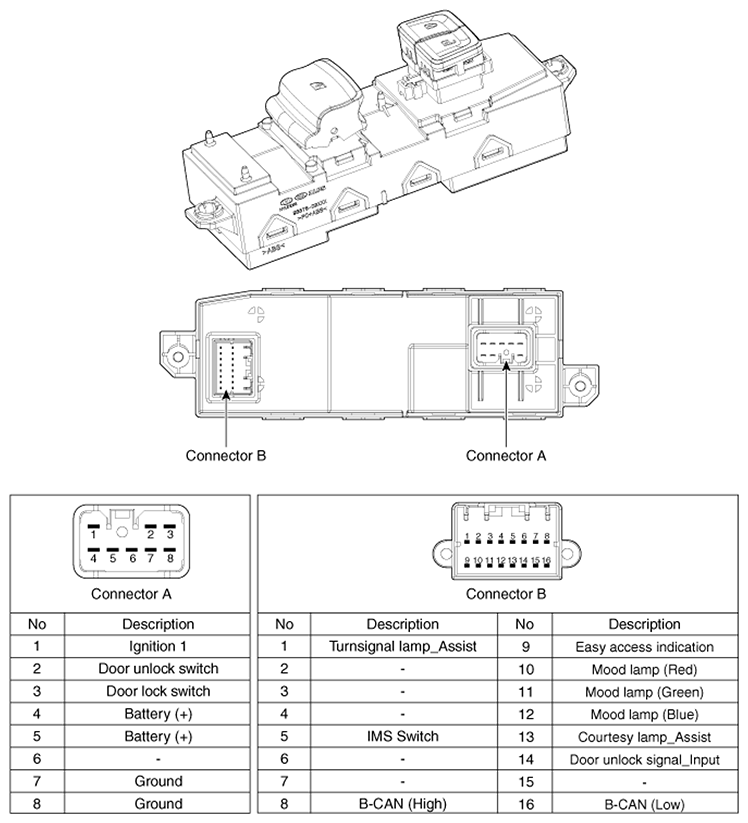

Fig 1: Locating Assist Door Module (ADM) Connectors
G11406315Courtesy of HYUNDAI MOTOR AMERICA

Rear Door Module (RRDM/RLDM)

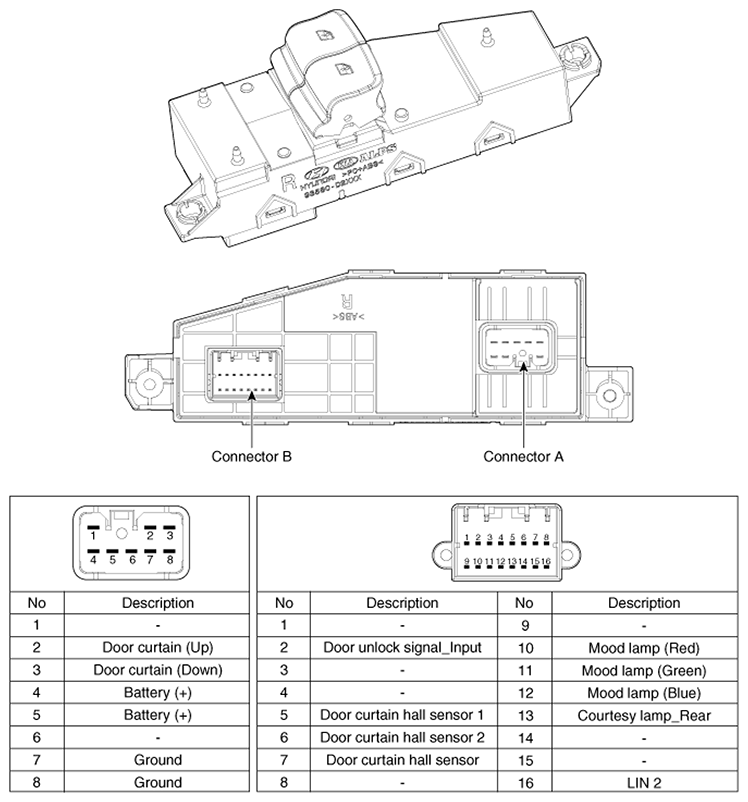

Fig 2: Locating Rear Door Module (RRDM/RLDM) Connectors
G11406316Courtesy of HYUNDAI MOTOR AMERICA
