Driver Door Module (DDM)

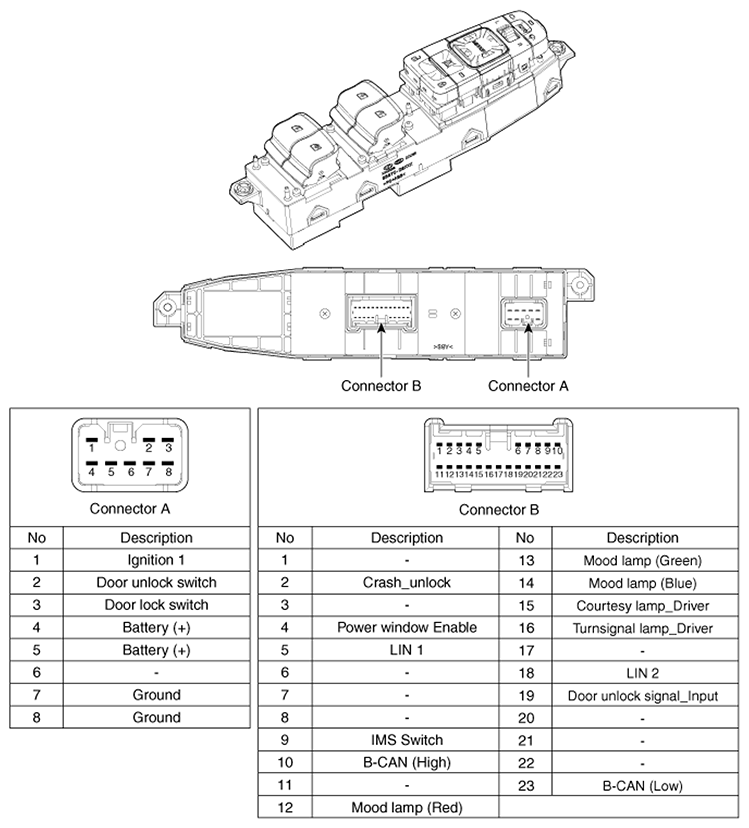

Fig 1: Locating Driver Door Module (DDM) Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
