Driver Door Module (DDM)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Remove the DDM (A) after loosening the mounting screws and disconnecting the connector (B).

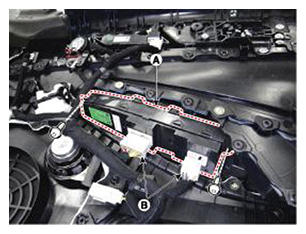

Fig 1: Removing DDM With Mounting Screws
G11406322Courtesy of HYUNDAI MOTOR AMERICA
