Repair Procedures: Installation

Install in the reverse order of removal.
Tighten the HECU mounting bolts and nuts to the specified torque.
After installation, bleed the brake system.
(Refer to Brake System - "BRAKE SYSTEM BLEEDING ")
Connect the GDS to the data link connector located underneath the dash panel.
Make a selection and operate the process according to the instructions on the GDS screen.
[Auto Detected Configuration Reset]

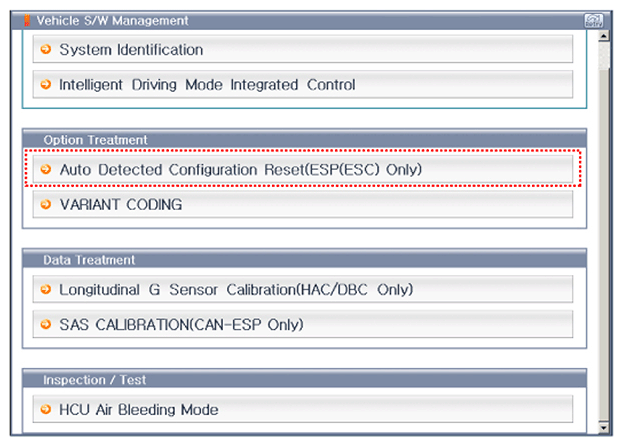

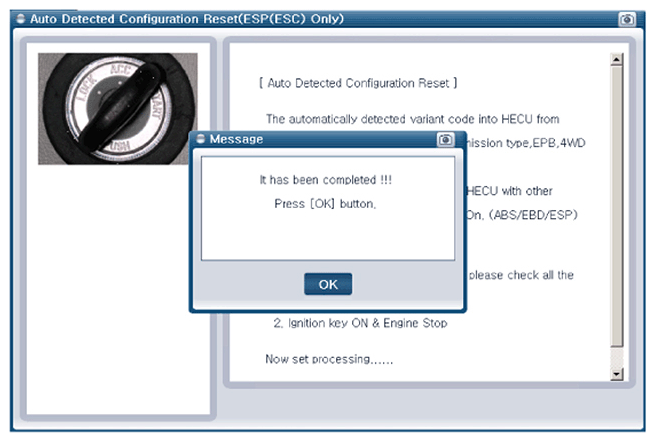

Fig 1: Screen Display - Auto Detected Configuration Reset (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - Auto Detected Configuration Reset (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Screen Display - Auto Detected Configuration Reset (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

[Variant Coding]

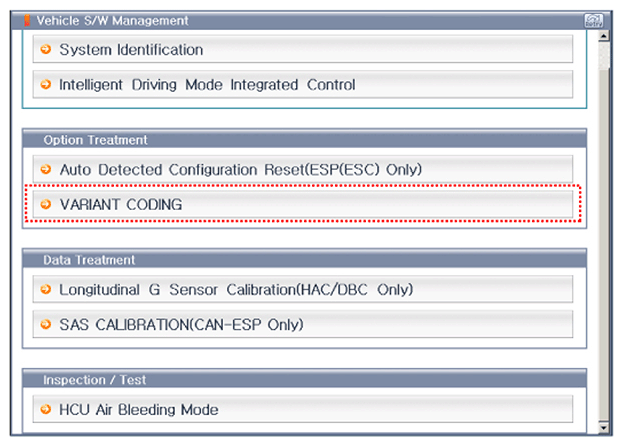

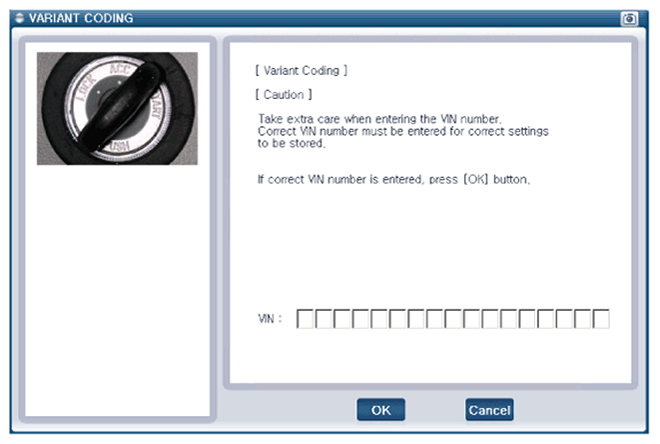

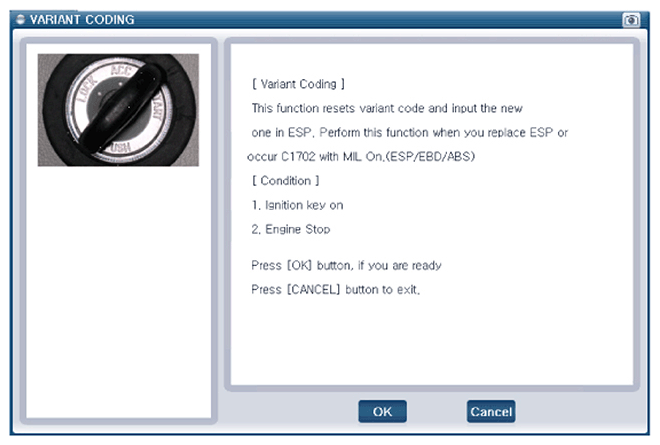

Fig 4: Screen Display - Variant Coding (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

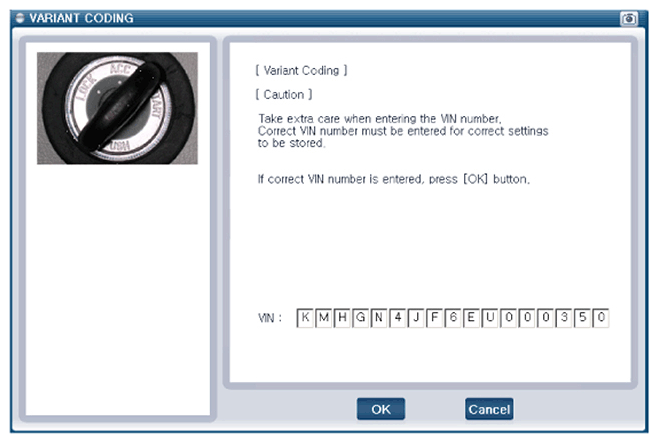

Fig 5: Screen Display - Variant Coding (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Screen Display - Variant Coding (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Screen Display - Variant Coding (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

[Longitudinal G Sensor Calibration]

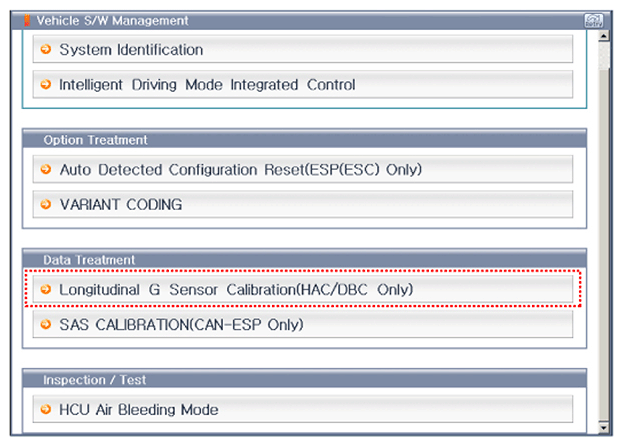

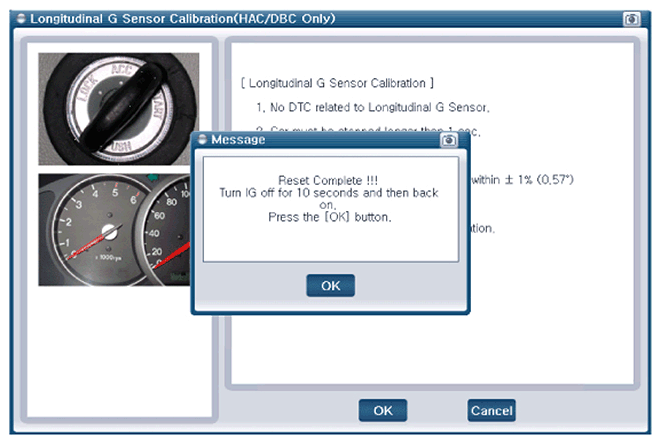

Fig 8: Screen Display - Longitudinal G Sensor Calibration (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

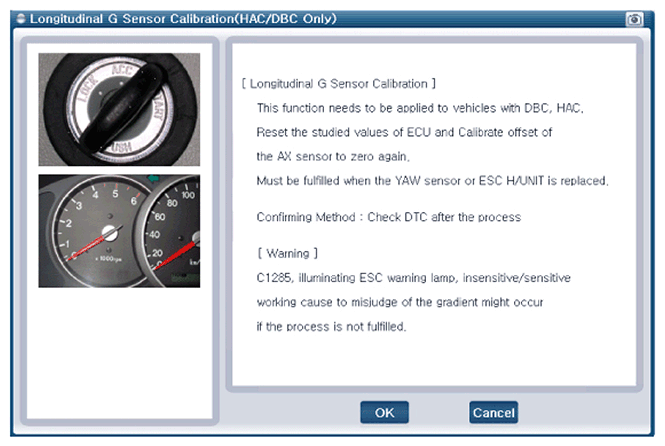

Fig 9: Screen Display - Longitudinal G Sensor Calibration (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Screen Display - Longitudinal G Sensor Calibration (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 11: Screen Display - Longitudinal G Sensor Calibration (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

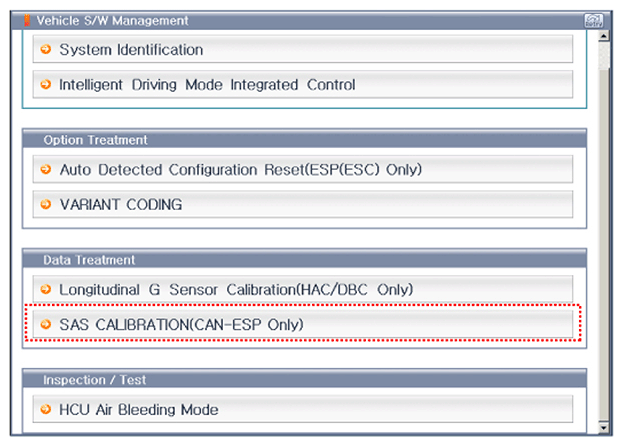

[SAS Calibration]

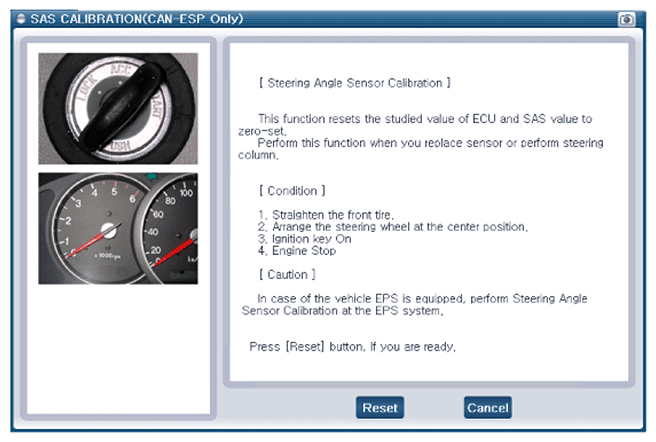

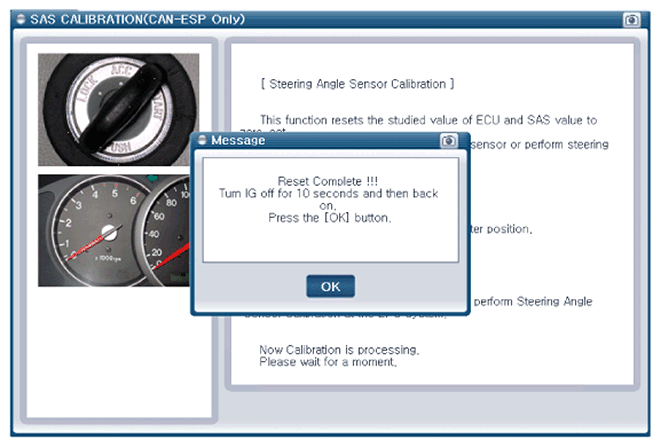

Fig 12: Screen Display - SAS Calibration (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

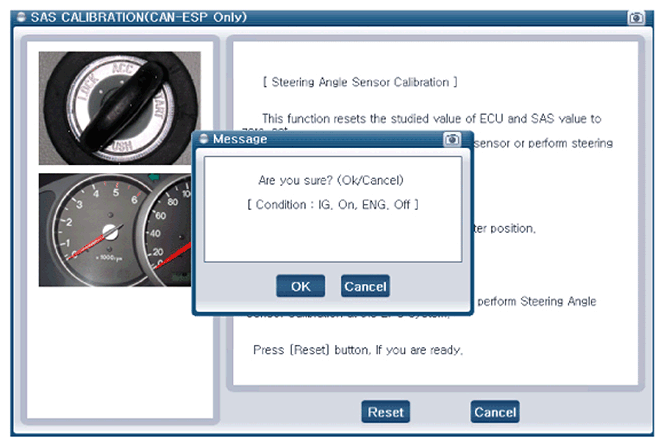

Fig 13: Screen Display - SAS Calibration (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 14: Screen Display - SAS Calibration (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 15: Screen Display - SAS Calibration (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
