Repair Procedures: Inspection

1. Fuse inspection

   Install the test fuse to the switch fuse and relay fuse part in order to confirm a normal joint fit.

   Courtesy of

   Courtesy of

2. Inspection of connector by each part

   Check whether each connector is damaged, or there is terminal surge or incomplete connection.

   [Engine room junction box]

   Courtesy of

   [Stop signal electronic module]

   Courtesy of

   [ABS/VDC control module]

   Courtesy of

3. Inspect the stop lamp circuit

Connect probe to each terminal wire and check oscilloscope waveform.

[Stop lamp switch input/output]

Courtesy of

[Stop signal electronic module input/output]

Courtesy of

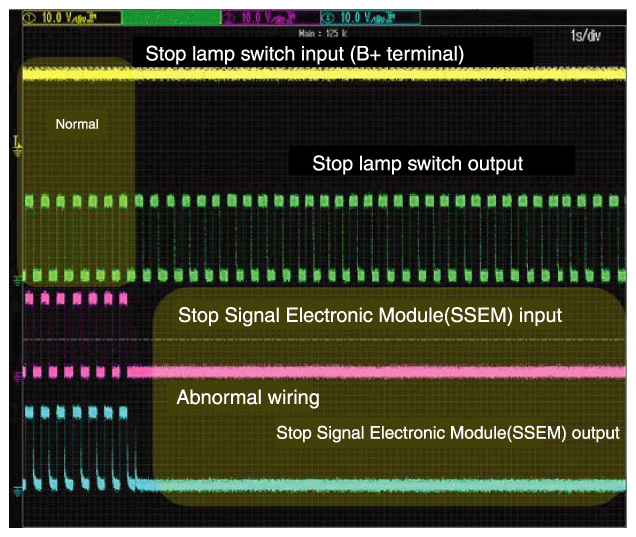

[Oscilloscope waveform screen]

Courtesy of
