■ Cluster Module Variant Coding

Verify vehicle options and have VIN code in hand.
Perform "CLU Variant Coding" in the "Vehicle S/W Management " with GDS.
Check for DTCs in the system.
Is the DTCs stored in the system as a present?

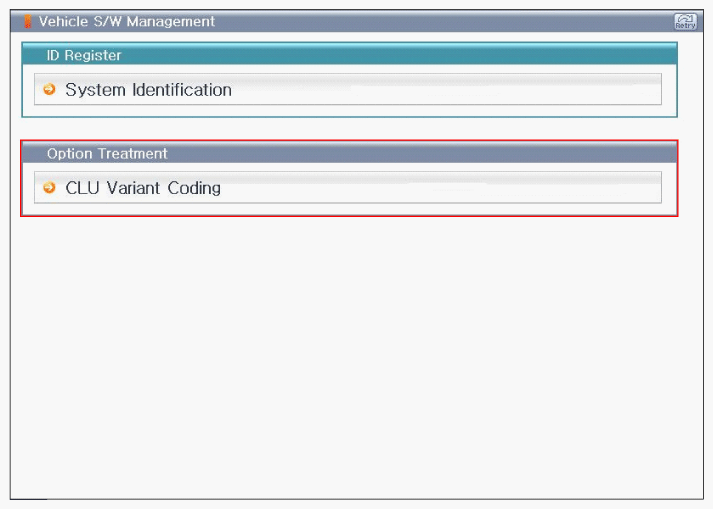

Fig 1: Display - Cluster Module Variant Coding Screen (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

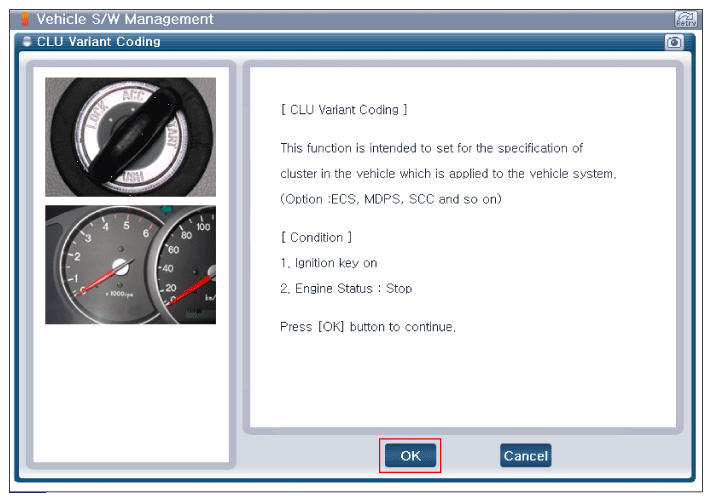

Fig 2: Display - Cluster Module Variant Coding Screen (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

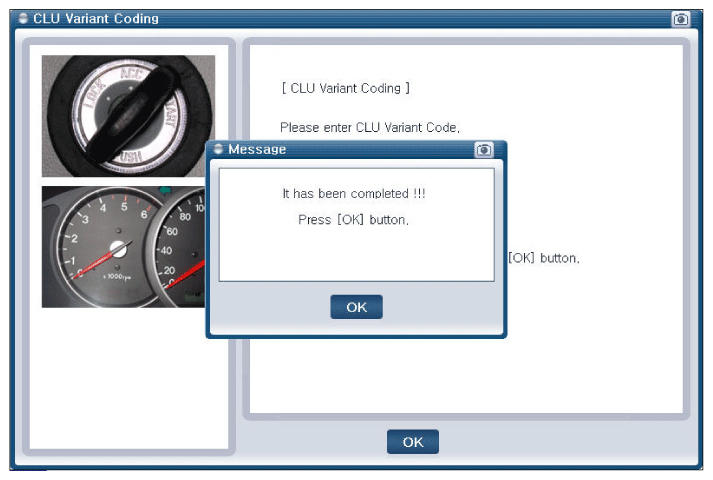

Fig 3: Display - Cluster Module Variant Coding Screen (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with GDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
