Signal Waveform & Data
WARNING:
This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

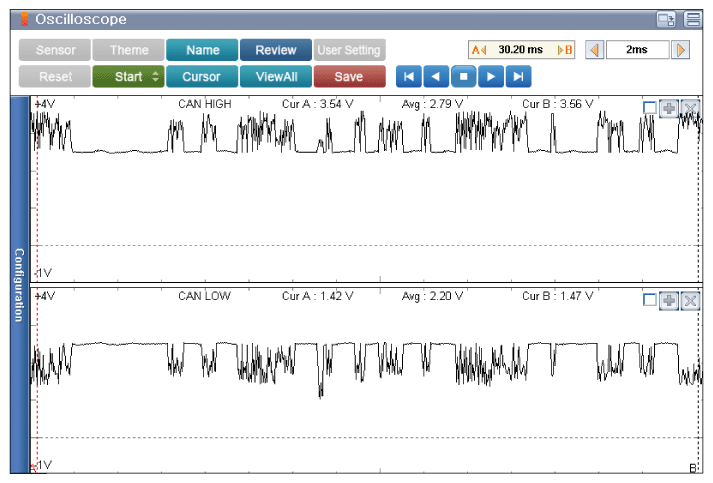

Fig 1: Display - C CAN Low And High Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

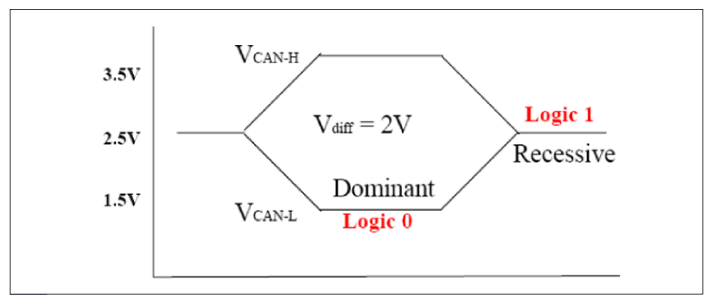

Fig 2: Display - C CAN Bus Voltage Level (High Speed CAN)
Courtesy of KIA MOTORS AMERICA, INC.
