Section 308 (Cluster Module Diagnosis)
>>
DTC B1020-55: TPMS Present Error - Coding Code Error
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data
WARNING:
This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

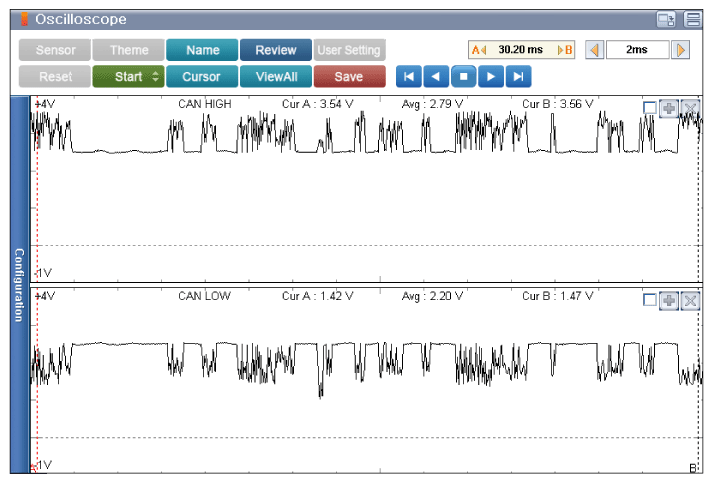

Fig 1: Display - C CAN Low And High Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

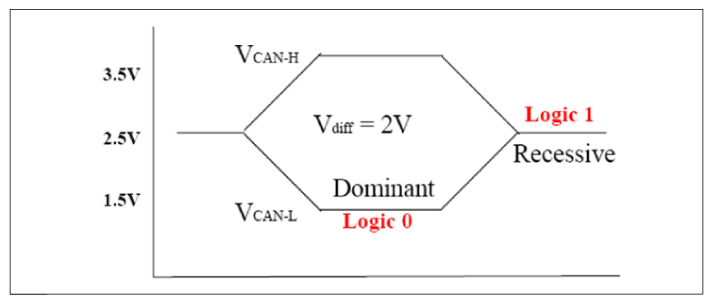

Fig 2: Display - C CAN Bus Voltage Level (High Speed CAN)
Courtesy of KIA MOTORS AMERICA, INC.
