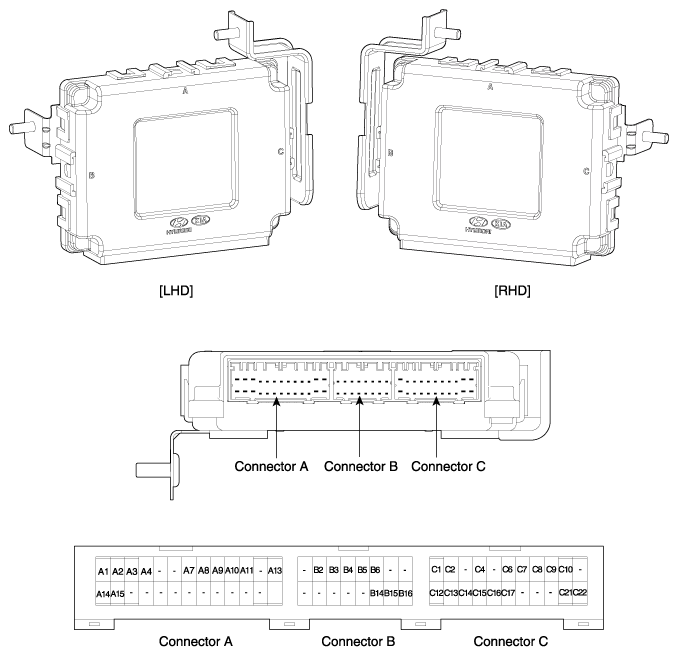

Components and Components Location: Components
WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Battery + | - | Room lamp Output |
| 2 | IGN1 | ECM Mirror + | Foot lamp Output |
| 3 | IGN2 | B CAN High | - |
| 4 | ACC | B CAN Low | - |
| 5 | - | PAS (LIN) | - |
| 6 | - | Integrated sensor (LIN) | L_Head lamp washer RLY_OUT |
| 7 | Rear Window Defroster switch | - | External buzzer output |
| 8 | parking brake switch | - | SSB light output |
| 9 | PAS off switch | - | Mood lamp output |
| 10 | Rear curtain switch | - | Rear curtain motor down Output |
| 11 | sunroof state | - | Rear curtain motor UP Output |
| 12 | - | - | ATM Solenoid outputs |
| 13 | Trunk open switch | - | Rear Seat belt light output (RH) |
| 14 | L_NADRI_OPT_IN | Rear Seat belt light output (LH) | Rear defogger light output |
| 15 | L_Deolicated DRI_OPT_IN | Rear Seat belt light output (Center) | PAS on light output |
| 16 | - | GND (Power) | safety belt light output (Assist) |
| 17 | - | security light output | |
| 18 | - | - | |
| 19 | - | - | |
| 20 | - | - | |
| 21 | - | GND (Rear curtain motor) | |
| 22 | - | Rear curtain Power | |
| 23 | - | ||
| 24 | - | ||
| 25 | - | ||
| 26 | GND |
