Repair Procedures: Installation: Notes
- Install in the reverse order of removal.
- Tighten the HECU mounting bolts and nuts to the specified torque.
- After installation, Bleed the Brake System.
(Refer to Brake System - "BRAKE SYSTEM BLEEDING ")
- Connect the GDS to the data link connector located underneath the dash panel.

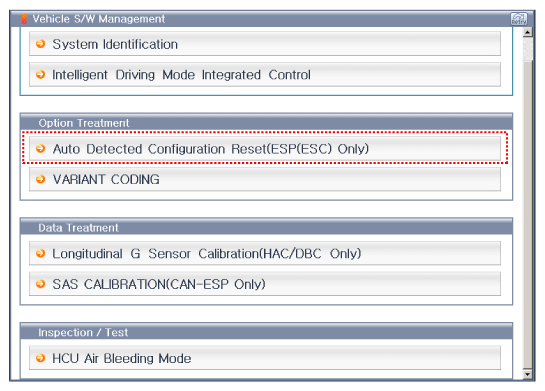

- Make a selection and operate the process according to the instructions on the GDS screen.

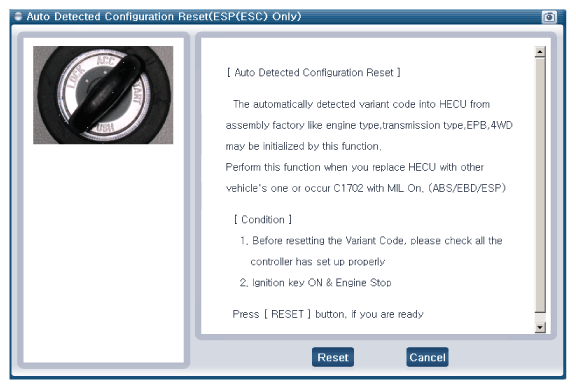

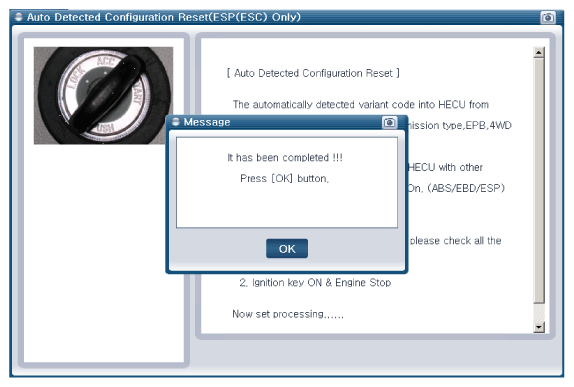

[Auto Detected Configuration Reset]
