Visual Inspection
- Check fuel tank for deformation or breakage visually.
- Check the fuel line between the delivery pipe (GDI, high pressure pump) and the fuel pump for deformation or breakage visually.

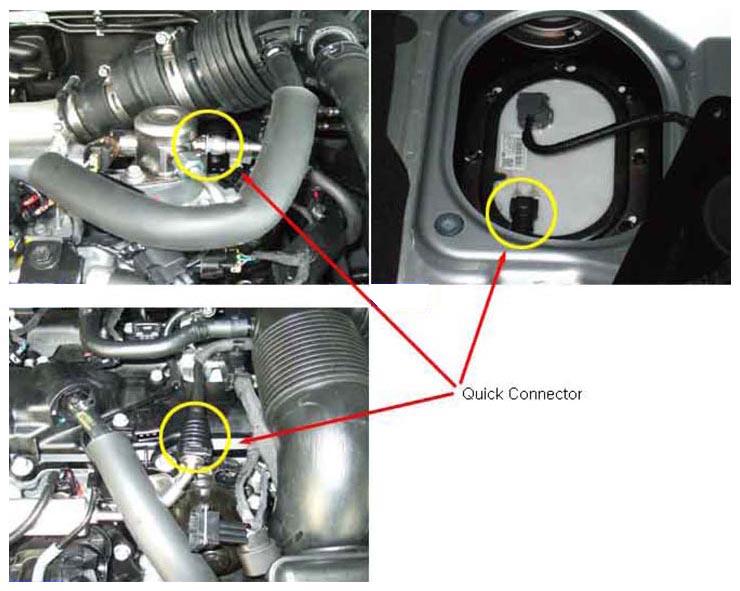

- Check the quick connectors connected to nipples at fuel pump or delivery pipe (GDS, high pressure pump) for fuel leakage and connection state with shaking.
