Components & Components Location: Components

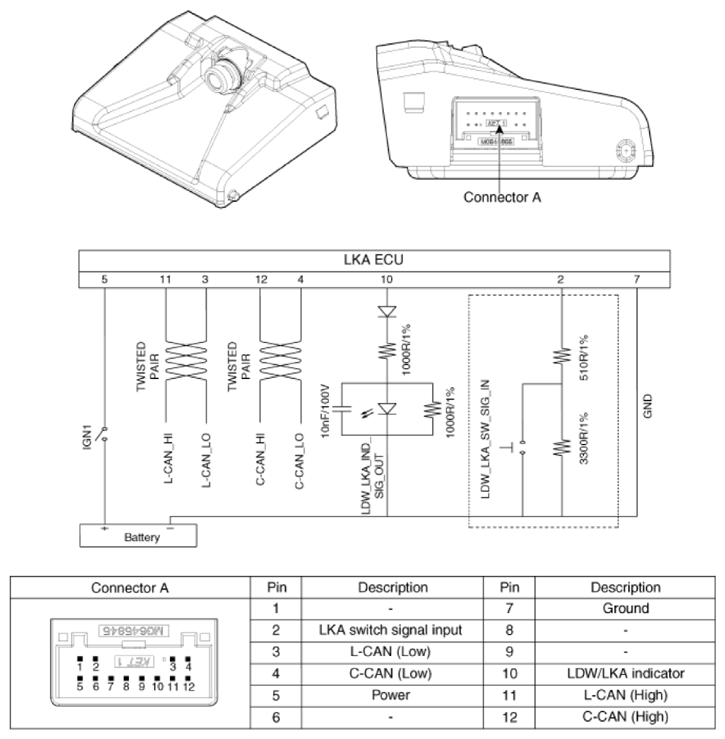

Fig 1: Front View Camera Connector End View And Terminal Description
G13542295Courtesy of HYUNDAI MOTOR AMERICA
