Repair Procedures: Installation

CAUTION:
  • When you need calibration
  • Replace Front View Camera with a new one
  • Front View Camera is removed and mounted
  • Windshield glass changed
  • Front View Camera coupler of the windshield glass is deformed

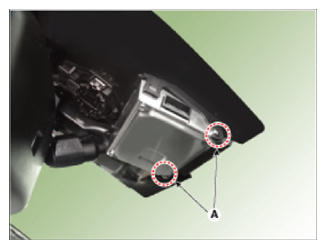

  1. Align the reference point at alignment point (A) and align front view camera.
    G13542297Courtesy of HYUNDAI MOTOR AMERICA
  2. Apply force to lock position (A) to complete mounting.
    G13542298Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the front view camera connector.
  4. Install the mirror wiring cover.
  5. Connect the negative (-) battery terminal.
  6. Perform the Variant coding.
