Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Disconnect the power seat module connector (A).
    G13541808Courtesy of HYUNDAI MOTOR AMERICA

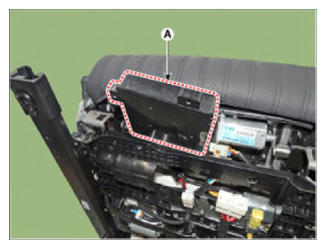

  4. Loosen the mounting screws and then remove the IMS unit (A).
G13541809Courtesy of HYUNDAI MOTOR AMERICA
