DTC C1203-01: Wheel Speed Sensor Front-RH Open/Short
>>
Specification
>>
Signal Waveform And Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

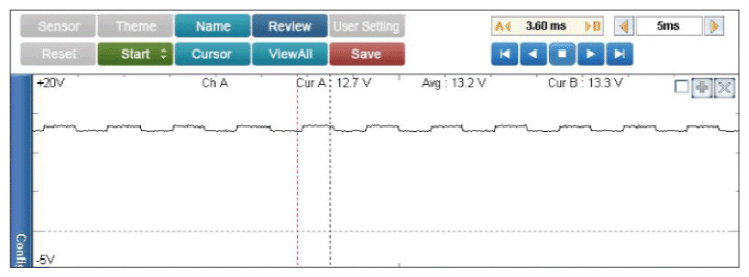

Signal Waveform And Data
Courtesy of HYUNDAI MOTOR AMERICA
High: Approximately 13.3 V, Low: Approximately 12.7V
