Repair Procedures: Replacement

Turn ignition switch OFF and then disconnect the battery (-) cable.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

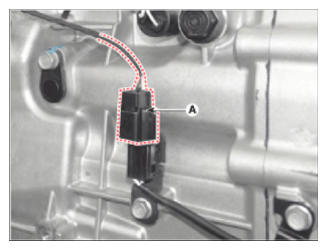

Disconnect the back up lamp switch connector (A)
Tightening torque :

29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

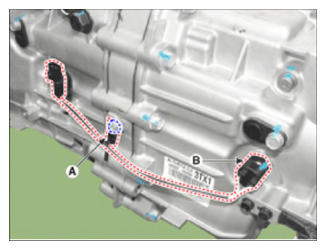

Remove the wiring bracket (A) and the back up lamp switch (B).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedures.
NOTE:
- When replace the back-up lamp switch use a new gasket.
