Repair Procedures: Inspection

  1. Turn ignition switch OFF and then disconnect the battery (-) cable.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

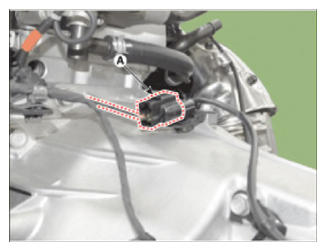

  3. Disconnect the neutral switch connector (A).
    G13539742Courtesy of HYUNDAI MOTOR AMERICA
  4. Check the continuity between no. 1 and 2 terminals of neutral position switch.

    When the shift lever is in neutral, there should be continuity.

    G13539743Courtesy of HYUNDAI MOTOR AMERICA
