Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

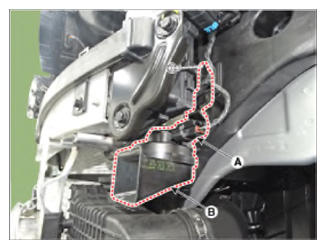

  2. Disconnect the connector (A) and then remove the low-pitch horn after loosening the mounting bolt.
    G13541626Courtesy of HYUNDAI MOTOR AMERICA

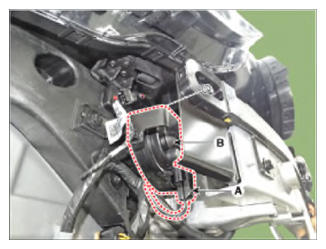

  3. Disconnect the connector (A) and then remove the high-pitch horn after loosening the mounting bolt.
G13541627Courtesy of HYUNDAI MOTOR AMERICA
