G70 3.3T Advanced, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Idle Stop & Go (ISG) System - 3.3L
>>
DC/DC Converter
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

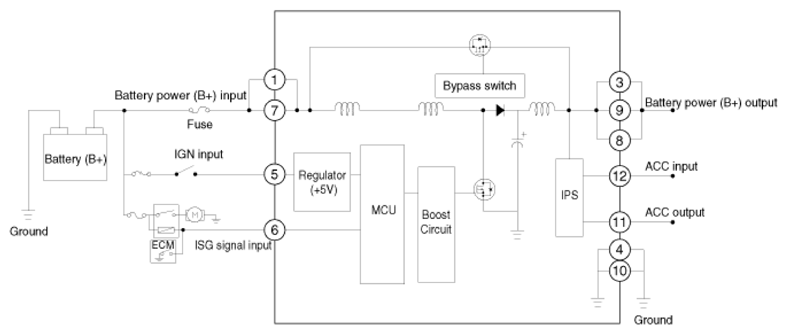

Circuit Diagram
[200W]
Courtesy of HYUNDAI MOTOR AMERICA

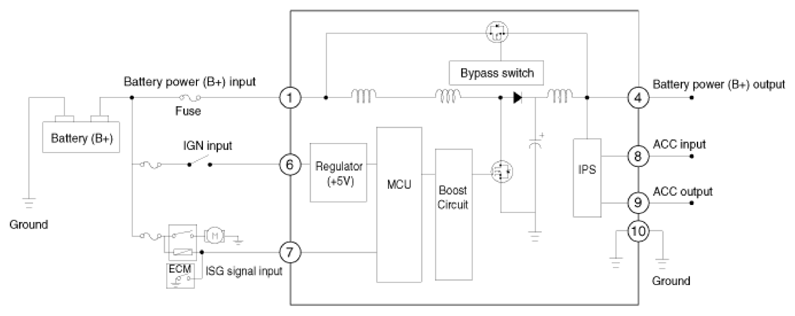

[400W]
Courtesy of HYUNDAI MOTOR AMERICA
