Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When it is assembled, it must be free from invasive foreign matters and oil leakage.
  • When it is installed, assembly grease (MCYL-2) must be applied adequately to inner surface of body and outer surface of tube guide.
  • After tightening bolts temporarily, tighten the bolt completely at the same time with regulation torque.

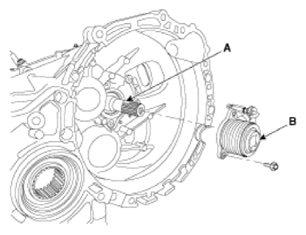

  • Before installation, wipe the input shaft spline part (A) and inner part of release bearing (B) with a clean cloth.
  • When it is installed, assembly grease (CASMOLY L9508) must be applied adequately to input shaft spline part (A) and inner part of release bearing (B).
    G13539701Courtesy of HYUNDAI MOTOR AMERICA
  1. To install, reverse the removal procedures.
  2. After be equipped, perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.
