Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install is proceeds as follows.
* How to install the ignition lock & clutch switch

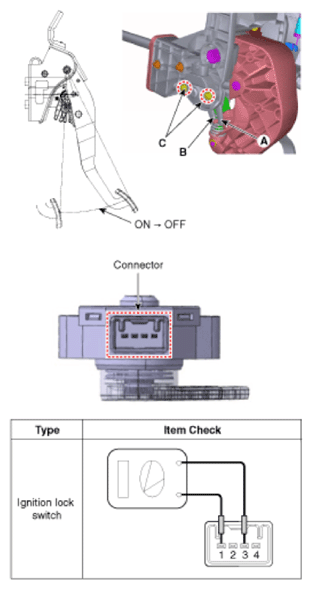

- After inserting the switch lever (A) into the clutch pedal pin (B), pre-tighten the switch mounting bolt (C).
- Set the clutch switches so as to confirm that the electric current is applied to the pins (1) and (3).
- Fix the clutch pedal to the ignition lock switch OFF→ON strokes (F).
- With the pedal fixed, rotate the switch clockwise and counter-clockwise to set it to a position at the transition from OFF to ON. Then, tighten the mounting bolt (C) to the specified torque.
- Once completing the assembly, check again that the switch is correctly operating.
OFF → ON Position (F)
125.4 ± 7.6 mm (4.9370 ± 0.2992 in.)
Tightening torque :
2.0 - 3.9 N.m (0.2 - 0.4 kgf.m, 1.4 - 2.9 lb-ft)
- Install the clutch & brake pedal assembly.
(Refer to Clutch System - "CLUTCH PEDAL ")
- After be equipped, perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.
(Refer to Clutch System - "CONCENTRIC SLAVE CYLINDER ASSEMBLY ")
- After installation, bleed the brake system.
(Refer to Brake System - "BRAKE BLEEDING PROCEDURES ")
