Repair Procedures: Installation

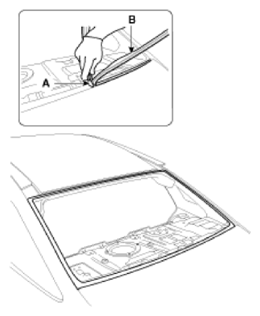

Using a cutting knife (A), remove the remaining sealant (B) on the body panel.
CAUTION:
- Put on gloves to protect your hands.
Courtesy of HYUNDAI MOTOR AMERICA

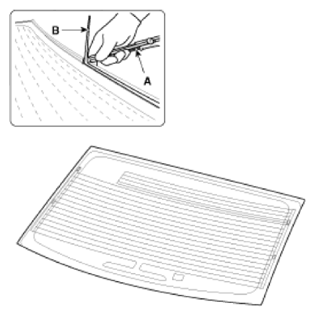

Using a cutting knife (A), remove the remaining sealant (B) on the rear window glass.
CAUTION:
- Put on gloves to protect your hands.
Courtesy of HYUNDAI MOTOR AMERICA
Apply the body primer to the bonding surface of body panel.
Information
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the windshield glass.
- Do not apply the body primer to the glass.
- Remove any foreign materials from the primer-covered surface.
- Apply the sealant within 5 minutes of applying the primer.
Courtesy of HYUNDAI MOTOR AMERICA
Apply the glass primer to the outer edge of rear window glass.
Information
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the windshield glass.
- Do not apply the body primer to the glass.
- Remove any foreign materials from the primer-covered surface.
- Apply the sealant within 5 minutes of applying the primer.
Courtesy of HYUNDAI MOTOR AMERICA

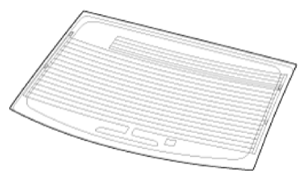

Install the rear window glass molding (A).

Courtesy of HYUNDAI MOTOR AMERICA

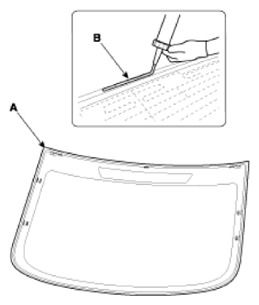

Using a sealant gun, apply the sealant (B) to the edge of rear window glass (A).
Sealant Bead width

Height: 12 mm (0.4724 in.)

Width: 8 mm (0.3150 in.)

Courtesy of HYUNDAI MOTOR AMERICA

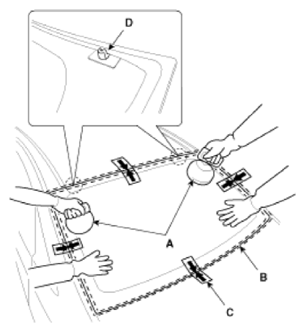

Using the glass holder (A), adjust the rear window glass (B) to fit the alignment marks (C) on the body and lightly push the windshield glass to make the edges fully seated on the bonding surface of body
NOTE:
- When installing the rear window glass (B), be sure to fit the protruding part (D) on the reverse side of the glass into the groove on the body frame.
Courtesy of HYUNDAI MOTOR AMERICA
Install the hot wire connector (A).

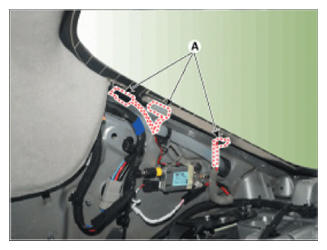

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

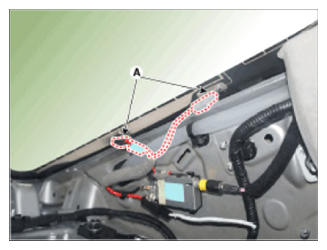

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
To make sure that the applied sealant is completely hardened, leave the car on a flat surface for at least 3 to 4 hours after installing the rear window glass.
Information
- If driving the car is inevitable, drive at a low speed for at least 8 hours.
- Advise the driver to avoid aggressive driving or driving on rough roads for 2-3 days after installing the rear window glass.
Conduct a leak testing.
Information
- The leak testing shall be conducted at least 4 hours after the rear window glass installation is completed.
- Do not directly spray the high-pressure water to the joint area.
Instal the rear package tray trim.
(Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")
Instal the roof side molding.
(Refer to Body Side Molding - "ROOF SIDE MOLDING ")
