Trunk Open Switch

  1. Check for continuity between the Trunk latch terminals.
    G12658571Courtesy of HYUNDAI MOTOR AMERICA

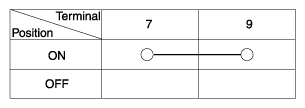

  2. If continuity is not specified, inspect the switch
    G12658572Courtesy of HYUNDAI MOTOR AMERICA
