Component Location

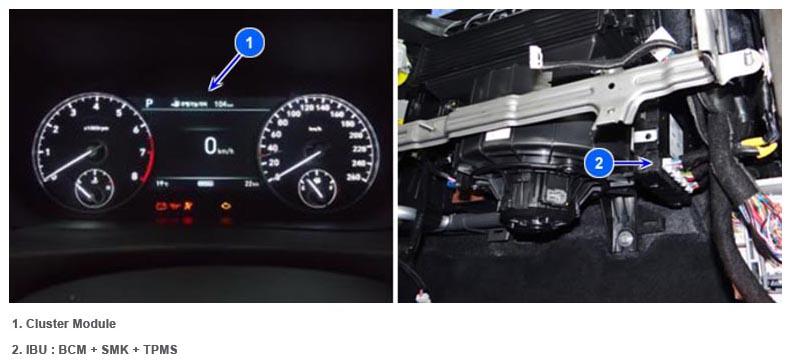

G12723000Courtesy of HYUNDAI MOTOR AMERICA
NOTE: Cluster  : "INSTRUMENT CLUSTER"
IBU  (Integrated Body control Unit): "IBU CONTROL MODULE"
BCM  : Body Control Module
SMK  : Smart Key Control Module
TPMS  : Tire Pressure Monitoring System Module
