Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

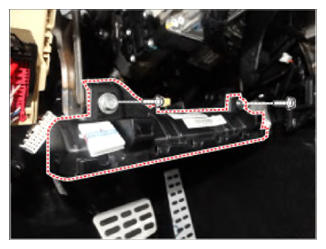

  3. Remove the Mounting bolts.
    G13540772Courtesy of HYUNDAI MOTOR AMERICA

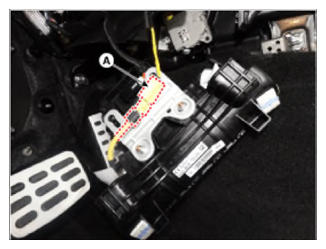

  4. Disconnect the knee airbag connector (A).
    G13540773Courtesy of HYUNDAI MOTOR AMERICA

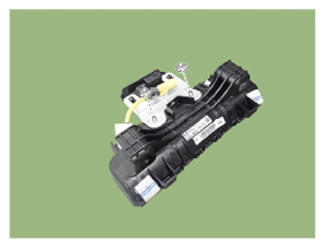

  5. Remove the knee air bag module bracket by loosening the screws.
    G13540774Courtesy of HYUNDAI MOTOR AMERICA
