Description And Operation
>>
Description
>>
ESS Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

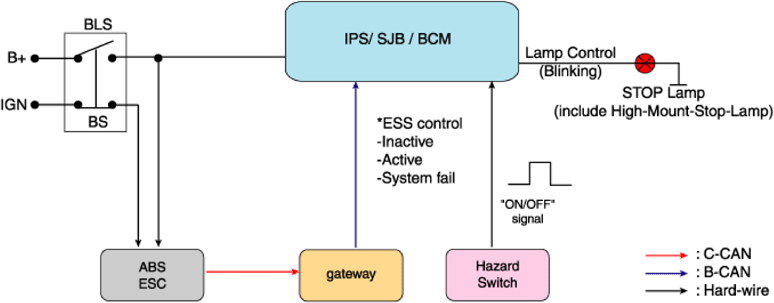

ESS Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
