Smart Key Code Saving

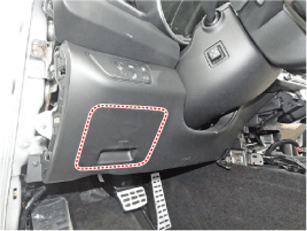

- Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

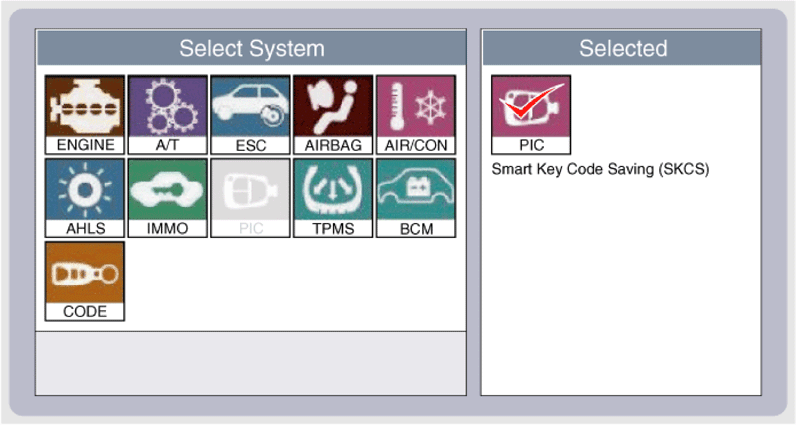

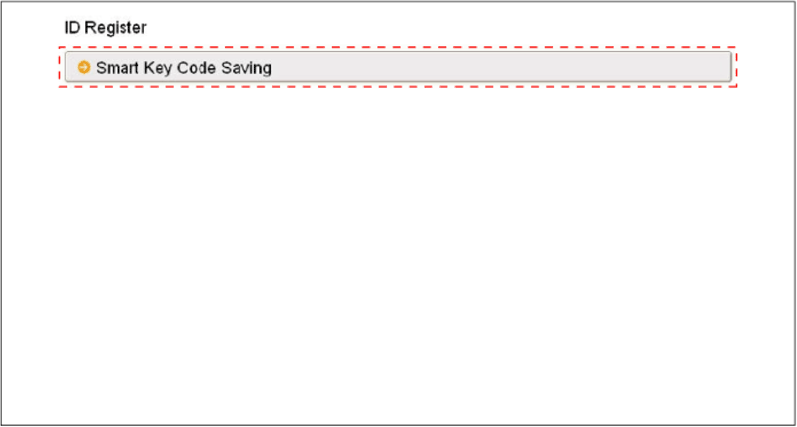

- Select the vehicle model and then do "Smart Key Code Saving".

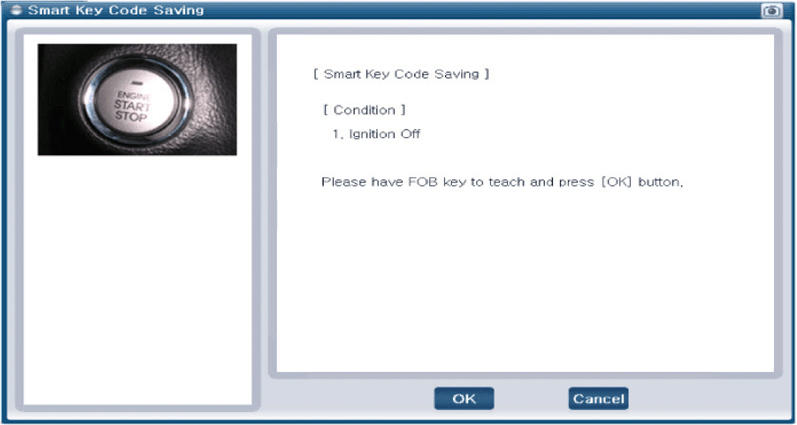

- After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be displayed as shown below.
- After having the teaching smart key, push "ENTER" key.

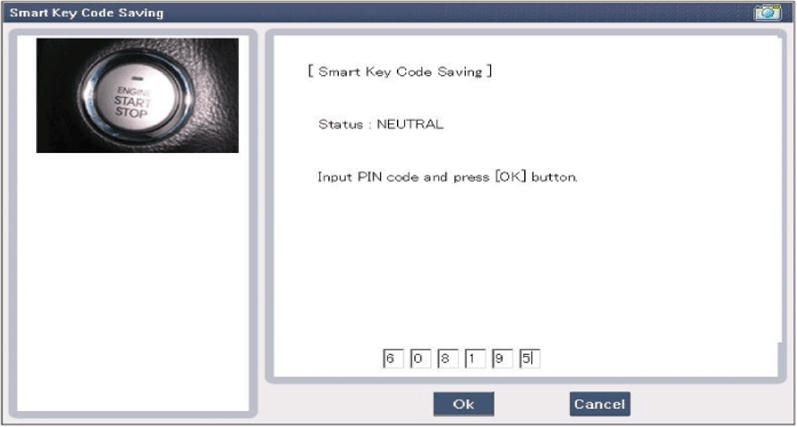

- Input the "Pin Code" for first key teaching.

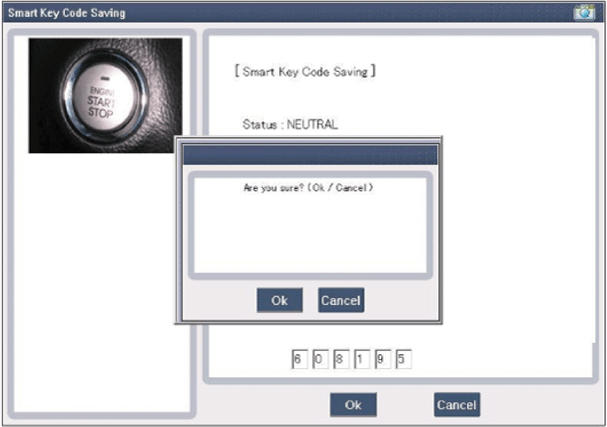

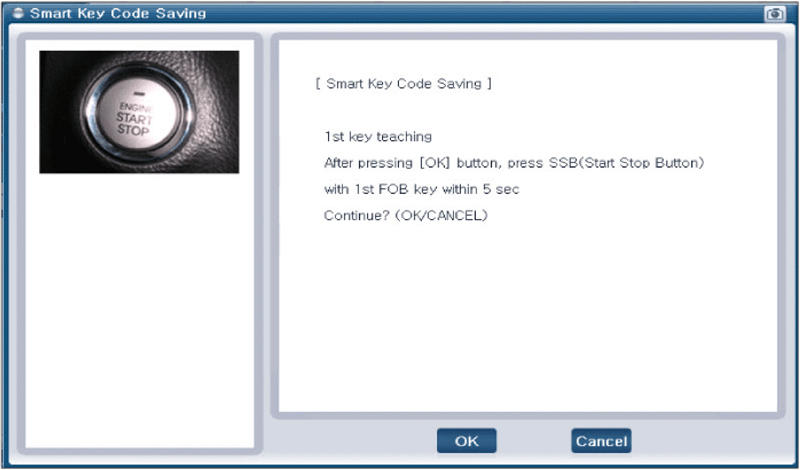

- Press the SSB with smart key within 5 sec. after pressing "OK".

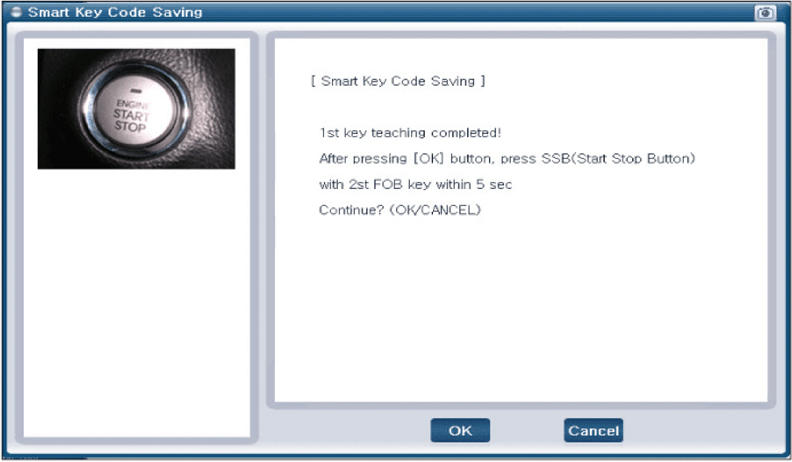

- Confirm the message "First Key Teaching Completed".

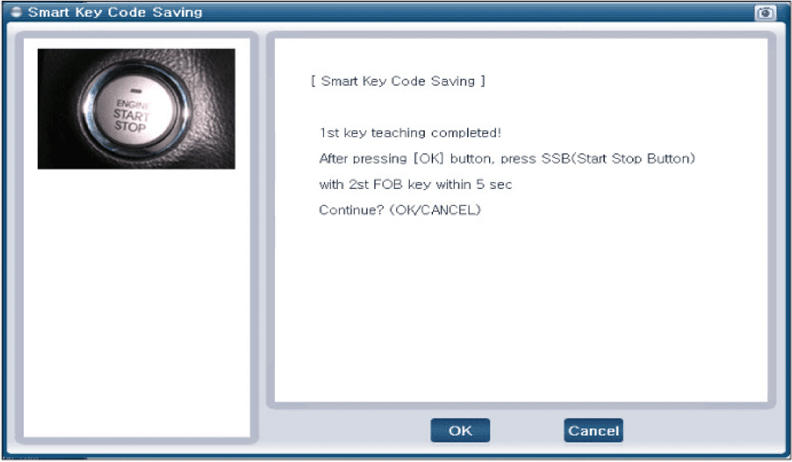

- Press the SSB with smart key within 5 sec. after pressing "OK".

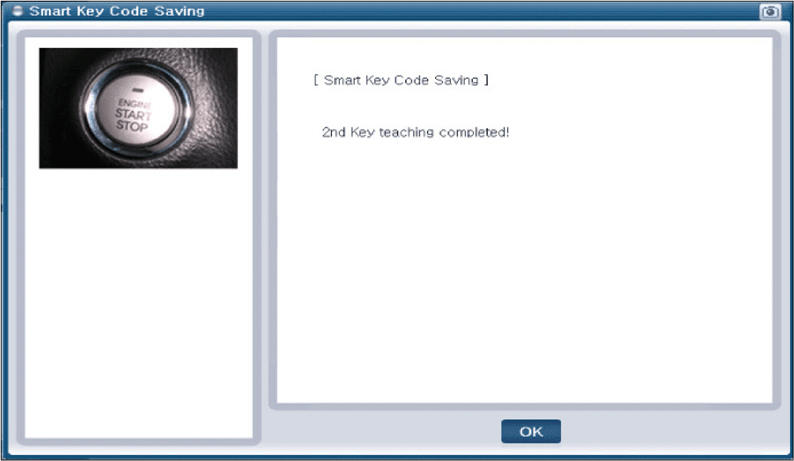

- Confirm the message "Second Key Teaching Completed".

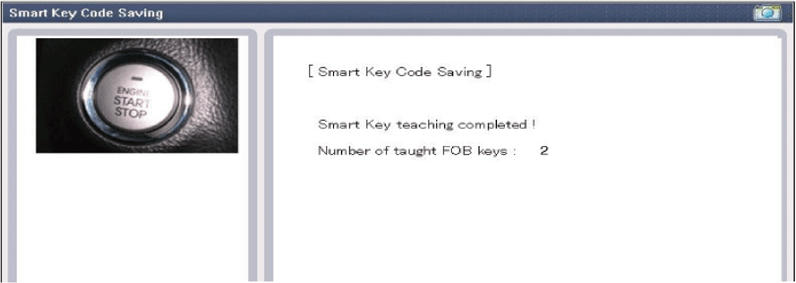

- Then the screen will be displayed as shown below when key teaching process is completed.
