Repair Procedures: Installation
- To install, reverse the removal procedure.
- After installation, bleed the brake system.
(Refer to Brake System - "BRAKE BLEEDING PROCEDURES ")
- Connect the GDS to the data link connector located underneath the dash panel.
- Using the GDS, Perform FCA (Smart Cruise Control System) variant coding.

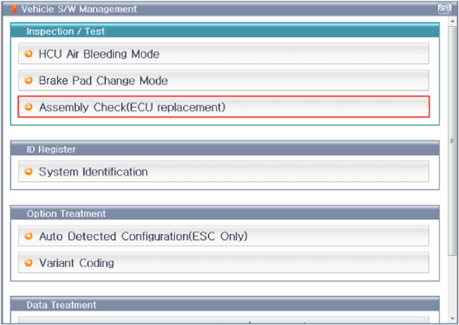

- After replacing the ESP control module execute the "Assembly Check (ECU replacement)" of the additional function to check that the mounting is successful.
