Steering Wheel Remote Controller: Function

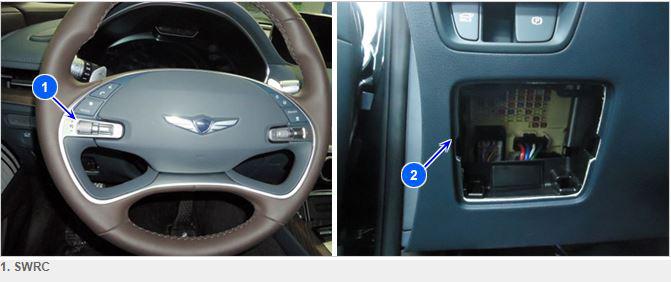

G15569333Courtesy of HYUNDAI MOTOR AMERICA

SWRC* is connected to ICU* to form B-CAN network of the vehicle. It is a convenience device which the driver can safely operate the device while driving.

Component Name_ETM Description ETM
SWRC* "CLOCK SPRING" Steering Wheel Remote Controller D200-6
ICU*
CGW
SJB		 → "ICU JUNCTION BLOCK"
→ "ICU JUNCTION BLOCK_IPS CONTROL MODULE"
→ "ICU JUNCTION BLOCK"		 → [CGW+SJB] Integrated Central control Unit
→ Central GateWay
→ Smart Junction Block
