Components And Components Location: Components

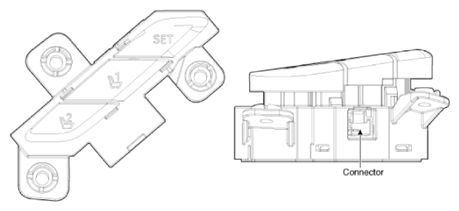

G15550124Courtesy of HYUNDAI MOTOR AMERICA
Connector NO Description
G13957210Courtesy of HYUNDAI MOTOR AMERICA
 1 B+ Tall lamp illumination (+)
2 IMS Switch
3 Ground
4 Ground (illumination)
