Power Trunk Module Diagnosis
>>
DTC B24D0-00: Power Trunk Module Inline Mode Not Deactivated
>>
Troubleshooting
>>
Diagnostic Flow-chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

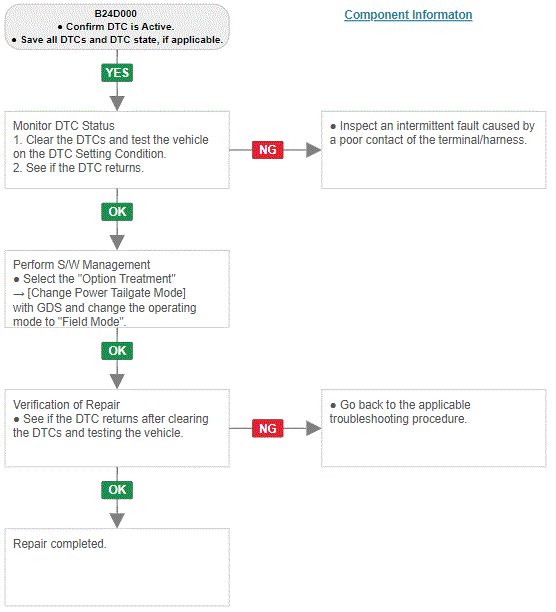

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
