Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

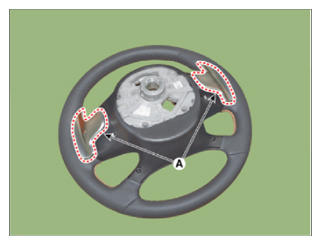

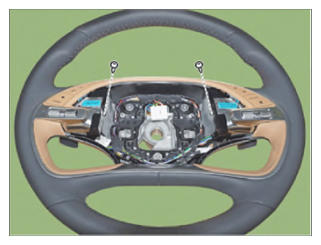

  4. Loosen the mounting screws and remove the paddle shift switch (A).
    G15555409Courtesy of HYUNDAI MOTOR AMERICA
    G15555410Courtesy of HYUNDAI MOTOR AMERICA

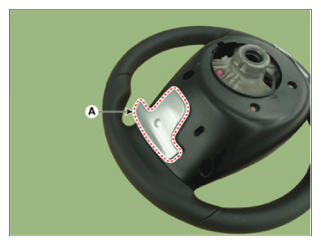

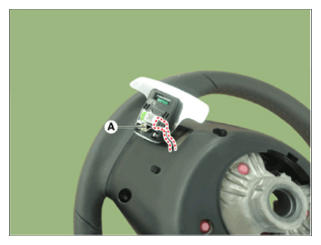

  5. Disconnect the paddle shift switch connector (A).
    G15555411Courtesy of HYUNDAI MOTOR AMERICA
    G15555412Courtesy of HYUNDAI MOTOR AMERICA

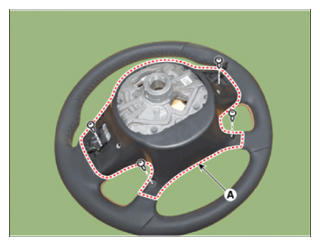

  6. Loosen the mounting screws and remove the lower cover (A).
    G15555413Courtesy of HYUNDAI MOTOR AMERICA

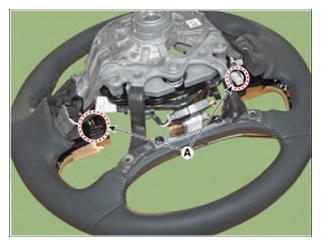

  7. Disconnect the remote control switch connector (A).
    G15555414Courtesy of HYUNDAI MOTOR AMERICA
