Measuring Resistance
- Remove the cruise control switch.

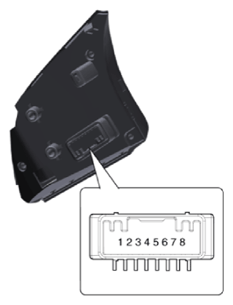

- Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Function switch Terminal Standard Terminal Option Resistance (± 5%) Paddle Up 2 - 6 8 - 6 390Ω Cancel 2 - 6 8 - 6 610Ω SET (-) 2 - 6 8 - 6 910Ω SET (+) 2 - 6 8 - 6 1.38 kΩ Cruise ON/OFF 2 - 6 8 - 6 2.13 kΩ SCC 2 - 6 8 - 6 7.93 kΩ Paddle Down 2 - 6 8 - 6 390Ω
