Repair Procedures: Installation

NOTE:
  • Put the vehicle on the level ground.
  • Take out heavy luggage from the vehicles' seats or trunk.
  • Set all tires according to the specified pressure.
  • Check wheel alignment.
  • Check that the front surface of the front radar is clean.

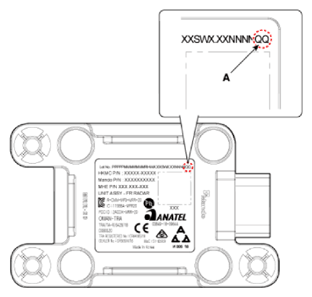

  1. Check the last 2 digits of Lot. No (A) on label at rear side before installing the front radar.

    Information

    • The meaning of Lot. No (A) is the vertical deviation angle of front radar inner side.
    G15555286Courtesy of HYUNDAI MOTOR AMERICA

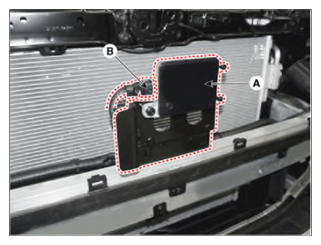

  2. Install the front radar (A) by tightening the nuts and connect the front radar connector (B).

    Front radar nuts:

    9.5 - 10.5 N.m (0.97 - 1.07 kgf.m, 7.0 - 7.7 lb.ft)

    G15555287Courtesy of HYUNDAI MOTOR AMERICA
  3. If replaced the front radar with a new one, perform variant coding procedure by using the diagnostic tool.
    G15555288Courtesy of HYUNDAI MOTOR AMERICA
  4. Check and align the front radar mounting angle.

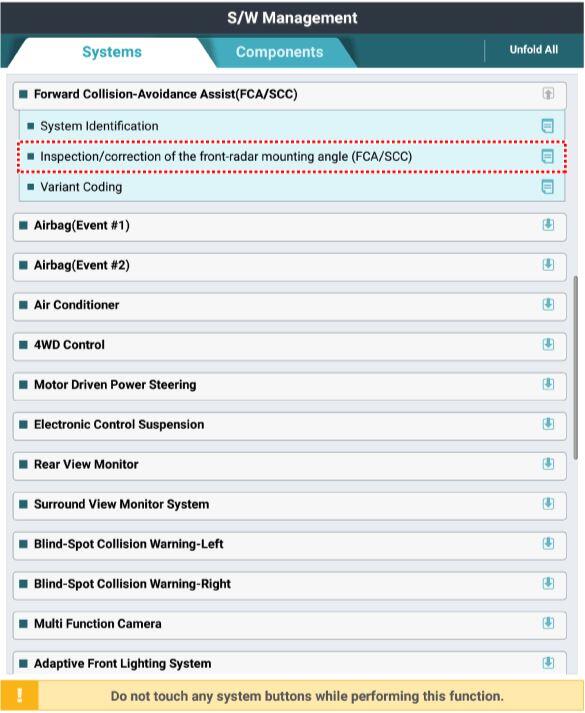

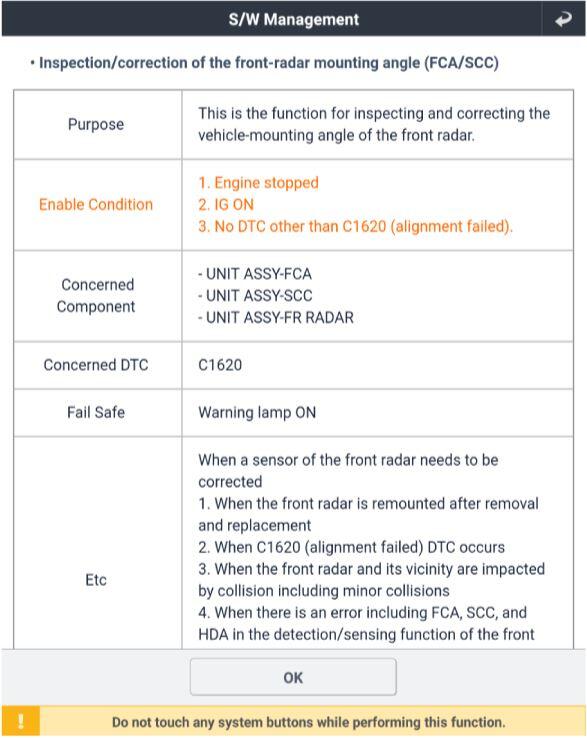

    1. Perform the "inspection/correction of the front-radar mounting angle" using the diagnostic tool.
      G15555289Courtesy of HYUNDAI MOTOR AMERICA
      G15555290Courtesy of HYUNDAI MOTOR AMERICA

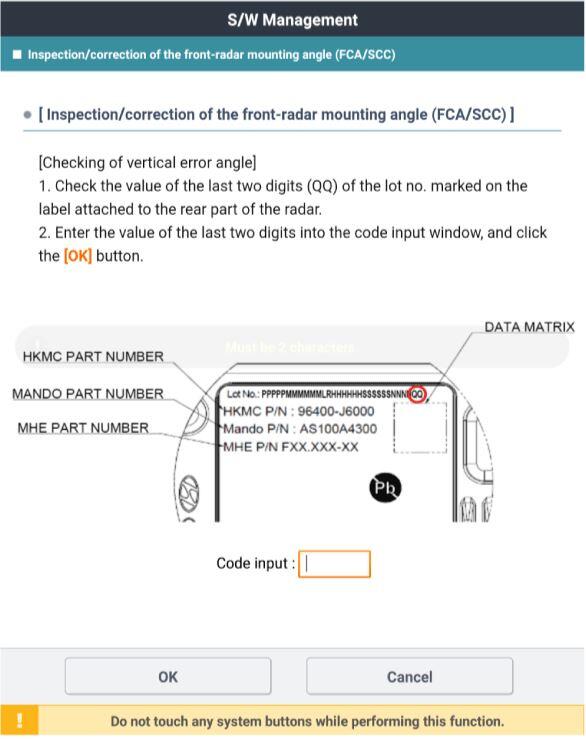

    2. Input 2 digits of value in the code input box, then press "OK"
      G15555291Courtesy of HYUNDAI MOTOR AMERICA

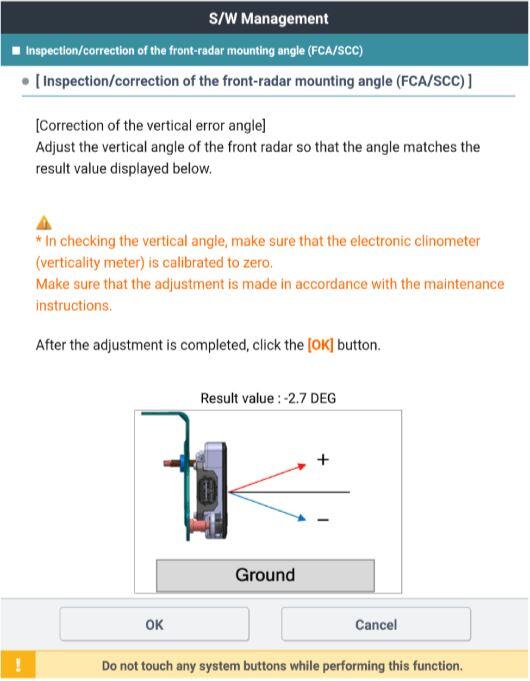

    3. Check the vertical angle which is compensated error on diagnostic tool.

      Information

      • The result value is final goal vertical angle which is compensated inner error of criteria vertical installation angle -1°.
      G15555292Courtesy of HYUNDAI MOTOR AMERICA
    4. Check the front radar vertical angle by using the vertical protractor (tilt meter).
      NOTE:
      • Make sure to perform zero setting before using vertical protractor. (perform this procedure periodically)
      • Be careful with +/- readings when finding true vertical using vertical protractor.

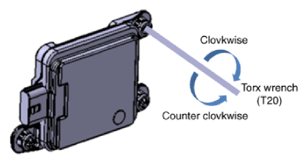

    5. Adjust to "target vertical angle" by turning adjusting screw of front radar.
      • turning clockwise: adjusting (+) angle
      • turning counterclockwise: adjusting (-) angle
      NOTE:
      • There is a chance to be transformed of bracket if adjusting screw with over strength.
      • Must recheck with vertical protractor if vertical angle is right after adjusting.
      G15555293Courtesy of HYUNDAI MOTOR AMERICA
      G15555294Courtesy of HYUNDAI MOTOR AMERICA
      Number of adjustment screw rotation Correction angle
      Clockwise Counter clockwise
      0.5 + 0.5° -0.5°
      1 + 1.0° - 1.0°
      1.5 + 1.5° - 1.5°
      2 + 2.0° -2.0°
      2.5 + 2.5° -2.5°
      3 + 3.0° -3.0°
      3.5 + 3.5° -3.5°
      4 + 4.0° -4.0°
      4.5 + 4.5° -4.5°
      5 + 5.0° -5.0°
    6. Install the front bumper assembly.

      (Refer to Body - "FRONT BUMPER ASSEMBLY ")

    7. Perform the front radar inspection/correction procedure by using the SST.

      (Refer to Smart Cruise Control (Stop & Go) (SCC) Unit-Radar - "ADJUSTMENT ")
