Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

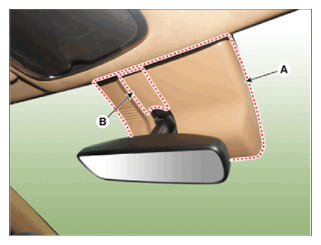

  2. Remove the inside rear view mirror cover (A) and rain sensor cover (B).
    G15555259Courtesy of HYUNDAI MOTOR AMERICA

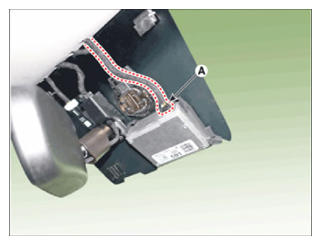

  3. Disconnect the front view camera unit connector (A).
    G15555260Courtesy of HYUNDAI MOTOR AMERICA

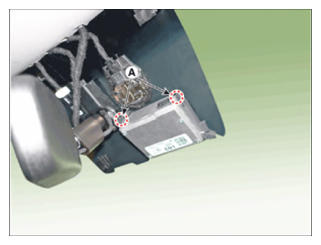

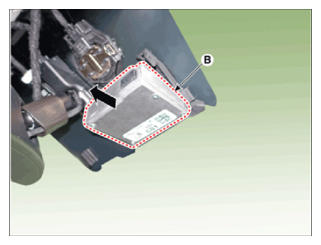

  4. Separate the fixed points (A) of coupler, remove the front view camera (B).
    G15555261Courtesy of HYUNDAI MOTOR AMERICA
    G15555262Courtesy of HYUNDAI MOTOR AMERICA
