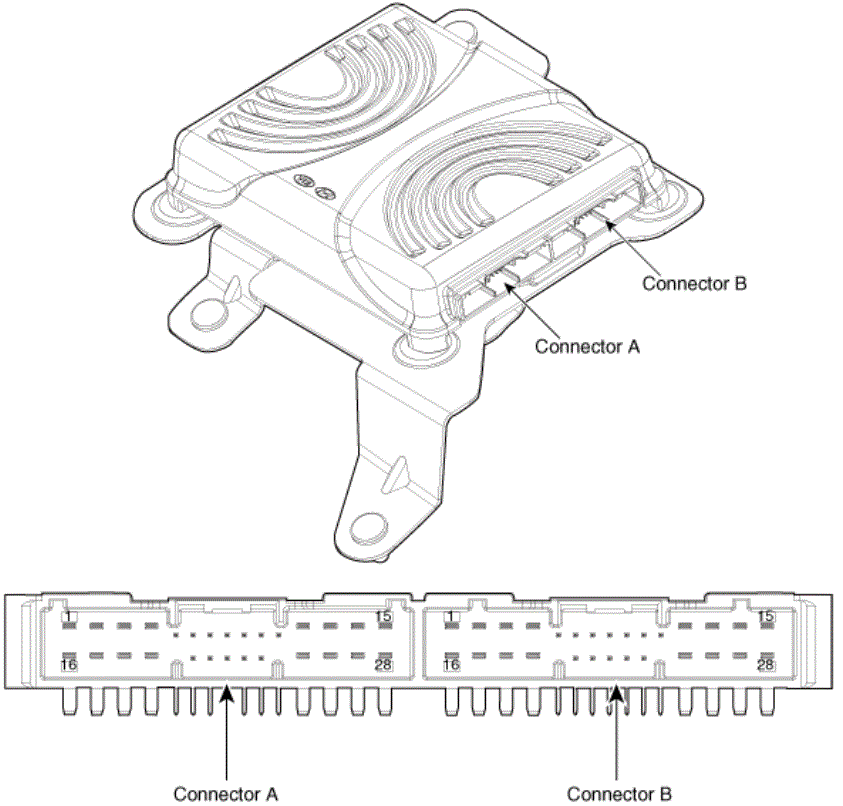

Components And Components Location: Components: [General]

Courtesy of HYUNDAI MOTOR AMERICA

Pin NO	Connector A	Connector B
1	Battery (+)	Rear Door Speaker (+) [LH]
2	Battery (+)	Rear Door Speaker (-) [LH]
3	Battery (+)	Rear Door Speaker (+) [RH]
4	Battery (+)	Rear Door Speaker (-) [RH]
5	-	-
6	MM-CAN (High)	-
7	MM-CAN (Low)	-
8	ACC	-
9	Navigation Voice (+)	-
10	-	-
11	-	-
12	Front Tweeter Speaker (+) [LH]	-
13	Front Tweeter Speaker (-) [LH]	-
14	Front Tweeter Speaker (+) [RH]	-
15	Front Tweeter Speaker (-) [RH]	-
16	Ground	Sub Woofer Speaker 1 (+)
17	Ground	Sub Woofer Speaker 1 (-)
18	Ground	Sub Woofer Speaker 2 (+)
19	Ground	Sub Woofer Speaker 2 (-)
20	SPDIF (High)	-
21	SPDIF (Low)	-
22	SPDIF (Ground)	-
23	Navigation Voice (-)	-
24	IGN 1	-
25	Front Center Speaker (+)	-
26	Front Center Speaker (-)	-
27	-	-
28	-	-
