Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

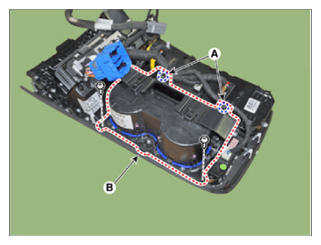

- Loosen the mounting clips (A), screws and remove the cup holder (B).

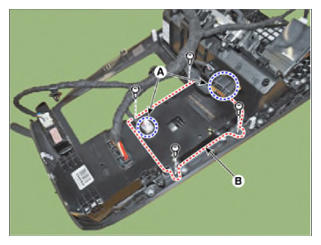

- Disconnect the front integrated controller connector (A)
Loosen the mounting screws and remove the front integrated controller (B).
