Repair Procedures: Removal

CAUTION:
  • Take care not to scratch the crash pad and related parts.
  • When removing with the screwdriver or remover, wrap the protective tape on the tools.
  • Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
  1. Disconnect the negative (-) battery terminal.

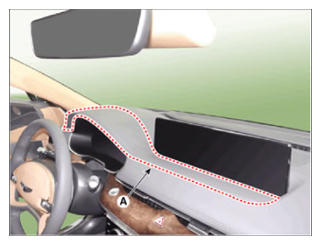

  2. Using a remover and remove the cluster fascia upper garnish (A).
    G15549956Courtesy of HYUNDAI MOTOR AMERICA

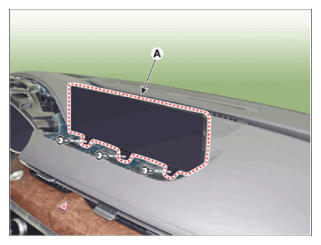

  3. Loosen the mounting screws and remove the front monitor (A).
    G15549957Courtesy of HYUNDAI MOTOR AMERICA

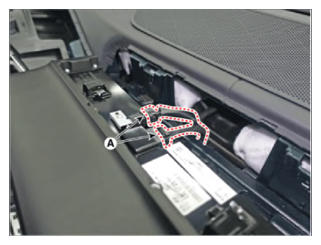

  4. Disconnect the front monitor connectors (A).
    G15549958Courtesy of HYUNDAI MOTOR AMERICA
