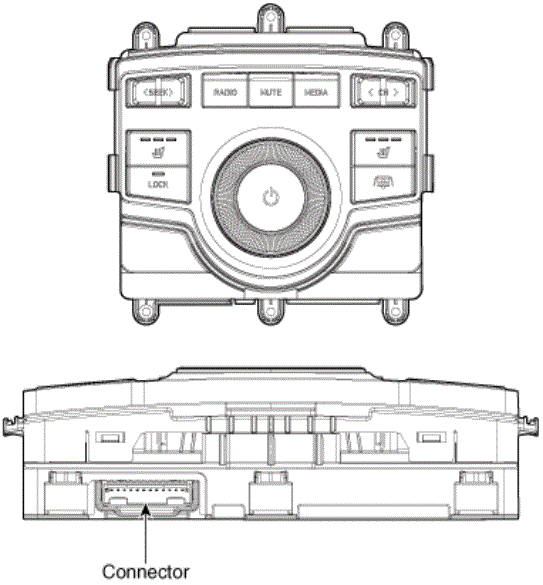

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

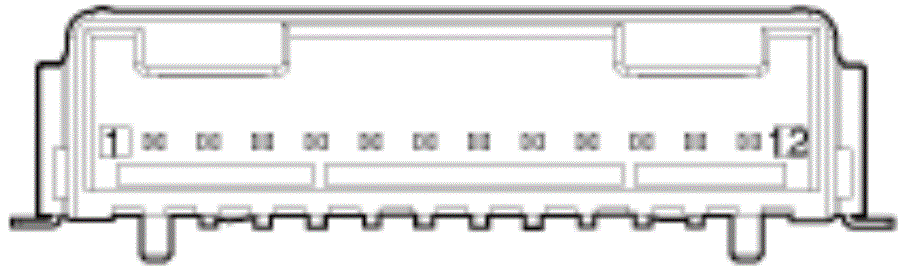

Connector	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Local_HS CAN (Low)
	2	Local_HS CAN (High)
	3	ACC
	4	RRC_Battery (+)
	5	ILL (+)
	6	-
	7	ILL (-)
	8	Ground
	9	B_CAN (Low)
	10	B_CAN (High)
	11	IGN1
	12	Seat_Battery (+)
