Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the rear console assembly. (Refer to REPLACEMENT Body - "Rear Console Assembly")

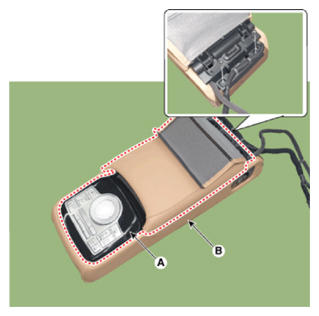

- Loosen the mounting screws, separate the rear console upper cover (A) and lower cover (B).

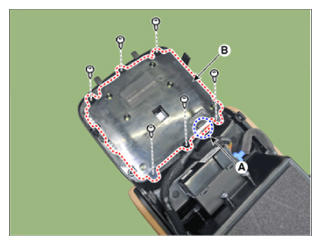

- Disconnect the rear integrated controller connector (A)
- Loosen the mounting screws and remove the rear integrated controller (B).
